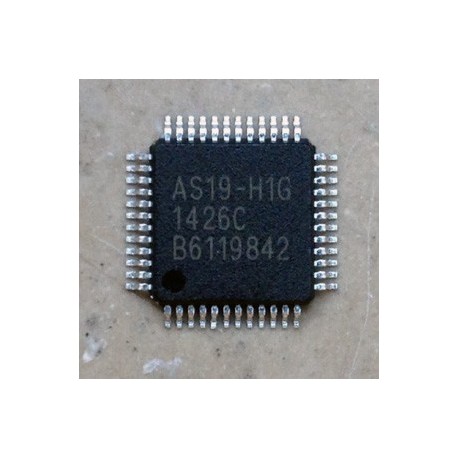

AS19-H1G

9,59 €
inkl. MwSt.

TFT-LCD Reference Driver für T-CON

Menge
1-3 Werktage

18+1 Channel Voltage Buffers for TFT LCD

FEATURES

  • Wide supply voltage range 6.5V ~ 18V
  • Rail-to-rail output swing (The highest two stage & lowest two stage)
  • High slew rate 1V/μs
  • GBWP 1 MHz
  • 2 MHz -3dB Bandwidth
  • Large Vcom Drive Current: ±100mA(Max)
  • Ultra-small Package TQFP-48



APPLICATIONS

  • TFT-LCD Reference Driver
AS19-H1G
